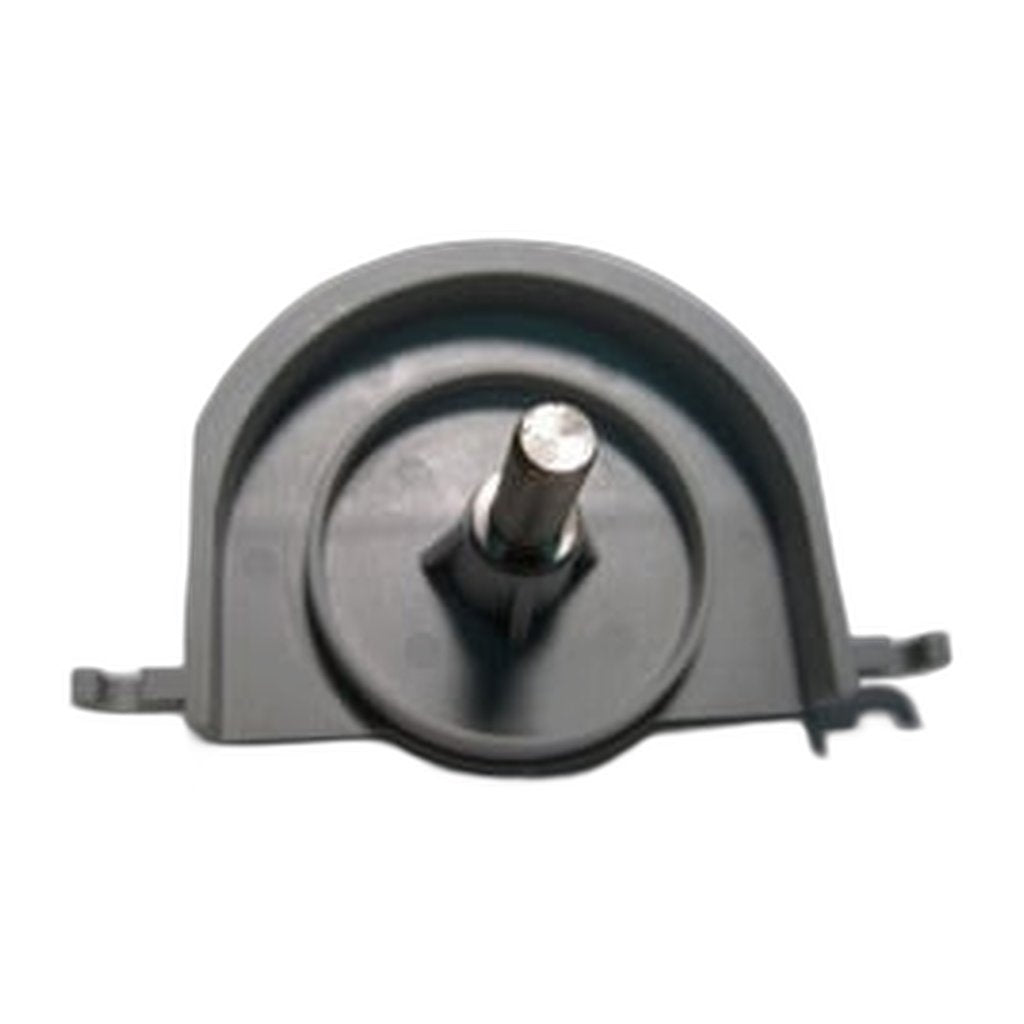

SEBO Right-Hand Bearing Block for the Duo, Light Gray

Rumble or wobble from the brush's right-hand end is normally the block carrying it, worn oval after enough hours on carpet. Part 3010HG is SEBO's right-hand bearing block for the Duo, moulded in light gray to match the machine, and drawn at position 30 of the parts diagram between the M4 x 10 screws at 29 and the brush housing at 31.

The block locates the shaft end and absorbs the side loading that brushing produces. When the seat opens up, the brush drifts out of line, scuffs against the housing and adds drag that the belt and motor have to pay for; left long enough it will mark the housing itself, which is a considerably larger repair. The symptoms worth acting on are a knock that follows brush speed rather than motor speed, visible play when the brush end is lifted by hand, and a brush that has started to polish one edge of its chamber.

• Part number: 3010HG
• Side: right hand
• Colour: light gray
• Diagram position: 30 on the SEBO Duo parts diagram
• Fits: the SEBO Duo brush machine
• Related numbers: 3074HG bearing block LH at 69, 3052HG bearing block assembly LH at 70, 0222 ball bearing 626-2Z at 58, 3030 clamp at 52

The left-hand side of the machine uses its own numbers, so confirm which end you have stripped down before ordering: SEBO lists 3074HG for the left bearing block and 3052HG for the left bearing block assembly. If the ball bearing 0222 has been running rough, replacing it alongside the block saves a second strip-down, and the clamp 3030 that retains it is a small item worth having on the same order. Searches for a SEBO Duo bearing block, a right hand brush bearing or part 3010HG all arrive here. Genuine SEBO component from an authorized dealer. Ships in 2-5 business days.
