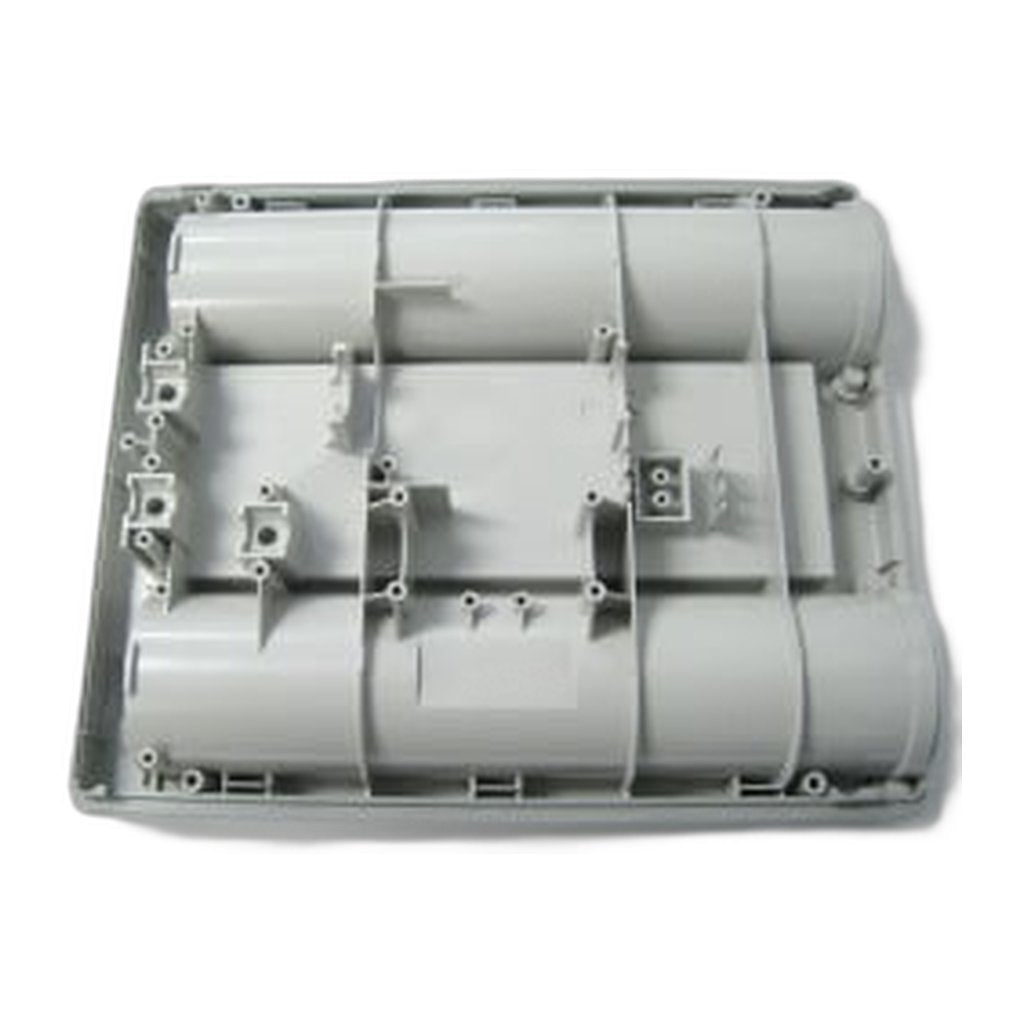

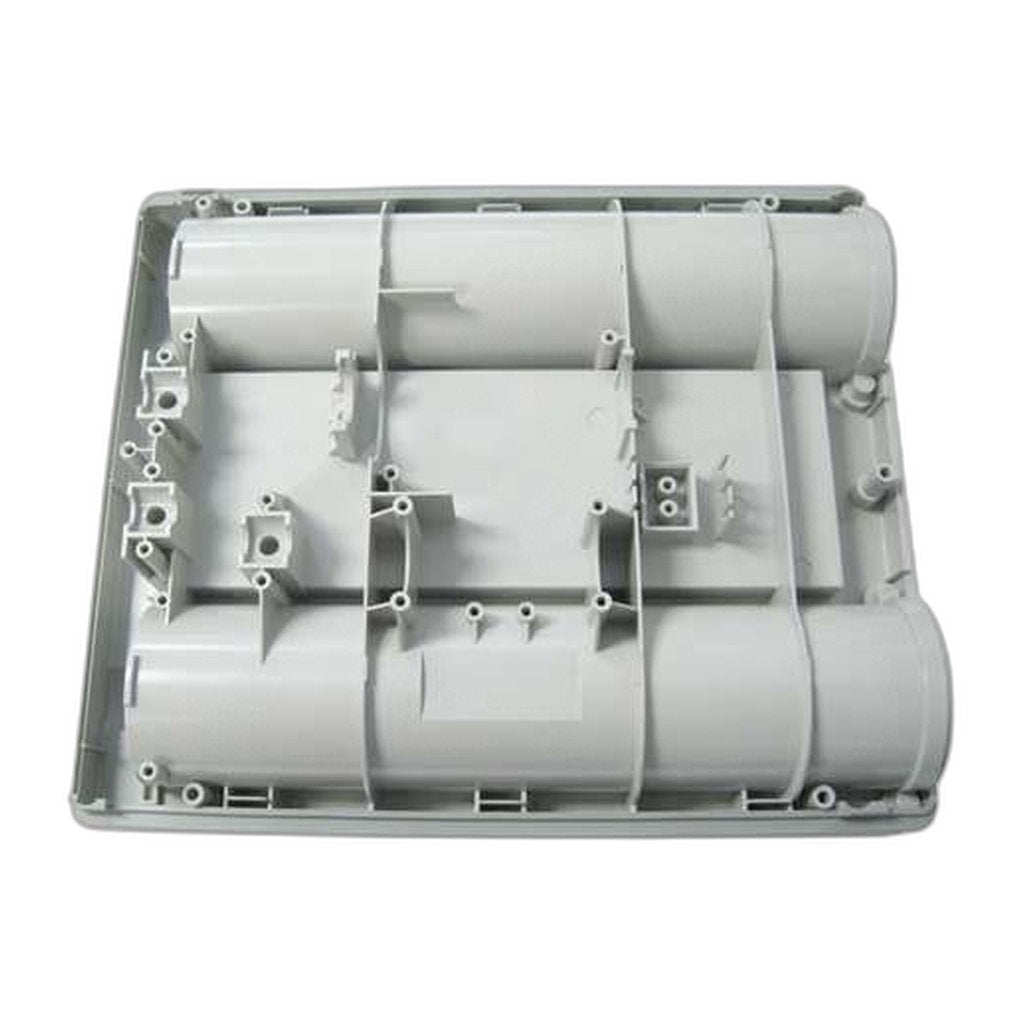

SEBO Brush Housing for the DUO — Light Gray

Light gray moulding forms the brush chamber of the SEBO Duo, and 3001HG is the factory replacement for it. The housing holds the brush assembly in position and shapes the space it works in, so its condition decides whether the brushes meet the floor evenly across their full width. SEBO supplies the Duo brush machine itself in light gray under 9401AM, and this housing is moulded in the same finish, which is why a replacement blends in rather than announcing itself.

The Duo parts diagram lists the brush housing at position 31, between the bearing block RH at 30, part 3010HG, and the handle stop spring block at 32, part 3032. Cracked mounting bosses are the usual reason one gets changed. The housing still looks serviceable from above, but the brush now sits at a slight angle, working hard on one side and skimming on the other; impact damage at the corners has the same effect. A housing that has been dragged over a threshold enough times can also lose its seating faces, and then no amount of retightening keeps the assembly square.

• Part number: 3001HG
• Colour: light gray
• Fits: the SEBO Duo brush machine
• Diagram position: 31 on the Duo parts sheet
• Holds: the brush assembly and the chamber around it
• Related numbers: 3005ER brush roller at 27, 3002SW base plate at 28, 3010HG bearing block RH at 30, 3074HG bearing block LH at 69
• Fasteners: screws 0112 and 0129 appear in this area of the drawing

With the machine this far apart, most owners take the chance to check the brush rollers and the drive before closing it up, since both are exposed once the housing is off. Anyone searching for a SEBO brush housing, a Duo brush chamber or part 3001HG is looking at this component. Genuine SEBO housing from an authorized dealer, shipping in 2-5 business days.
