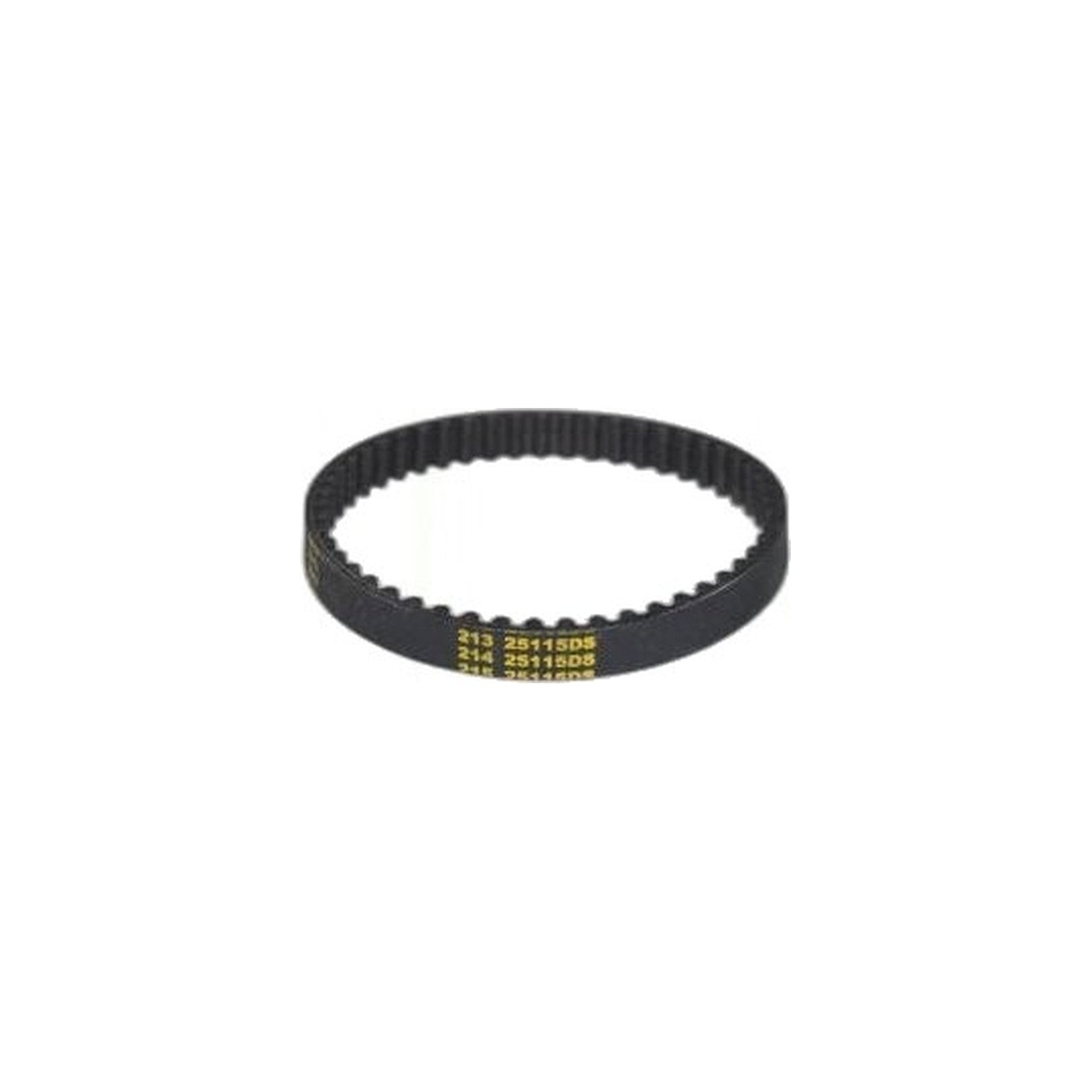

SEBO 5 mm Drive Belt for the Duo

SEBO designates this one the 5 mm belt. Part 3042 sits at position 54 of the Duo parts diagram, deep in the gear group between the pulley 3013 at 53 and the left-hand-thread gear wheel 3022 at 55, and it is a different item from the 3 mm belt listed separately for the same machine. Ordering by width rather than by number is where most mistakes happen, so take the part number from the diagram.

The symptoms build slowly enough to be easy to miss. First the belt stretches and starts to slip under load, so the brush loses speed only when it meets resistance. Then the running face glazes and stops gripping the pulley grooves at all. In the end the brush is barely turning while the motor sounds perfectly healthy, which is exactly the combination that sends people looking for a fault in the wrong half of the machine. Anyone already stripping the drive to reach the pulleys, the gear wheels or the bearing blocks should renew the belt while it is off the machine, because getting back in later costs far more time than the belt itself. Keeping one in the toolbox turns a dead machine into a short job rather than a wait.

• Part number: 3042
• Fits: the SEBO Duo brush machine
• Size: 5 mm, as designated by SEBO
• Diagram position: 54 on the SEBO Duo parts diagram
• Runs between: pulley 3013 at position 53 and gear wheel 3022 at position 55
• Sold: individually
• Not interchangeable with: the 3 mm Duo belt, which carries its own part number

A SEBO Duo 5 mm belt, a Duo gear drive belt and SEBO part 3042 all describe this listing. Genuine SEBO belt, dispatched by an authorized dealer in 2-5 business days.
