SEBO Complete Inside Bag Co...
$61.00
Product details

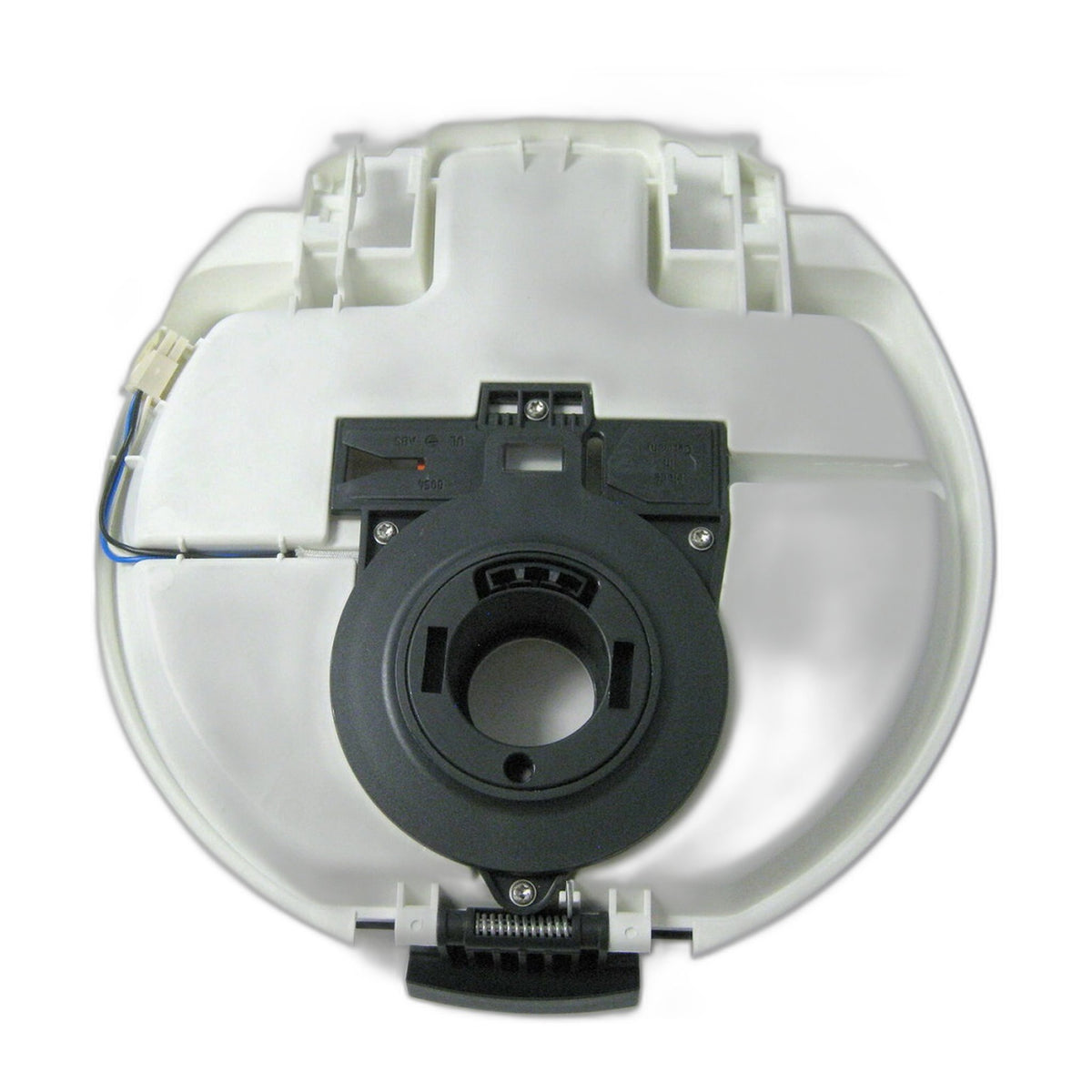

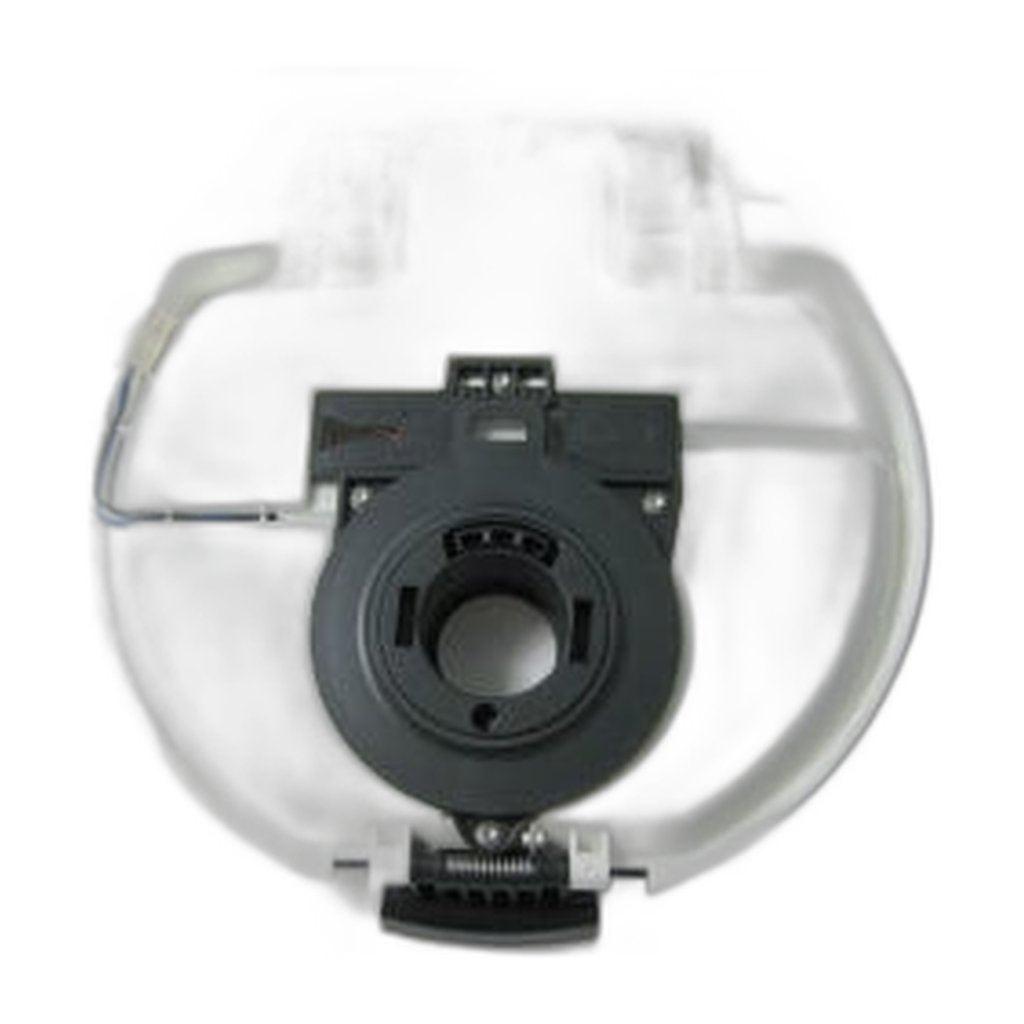

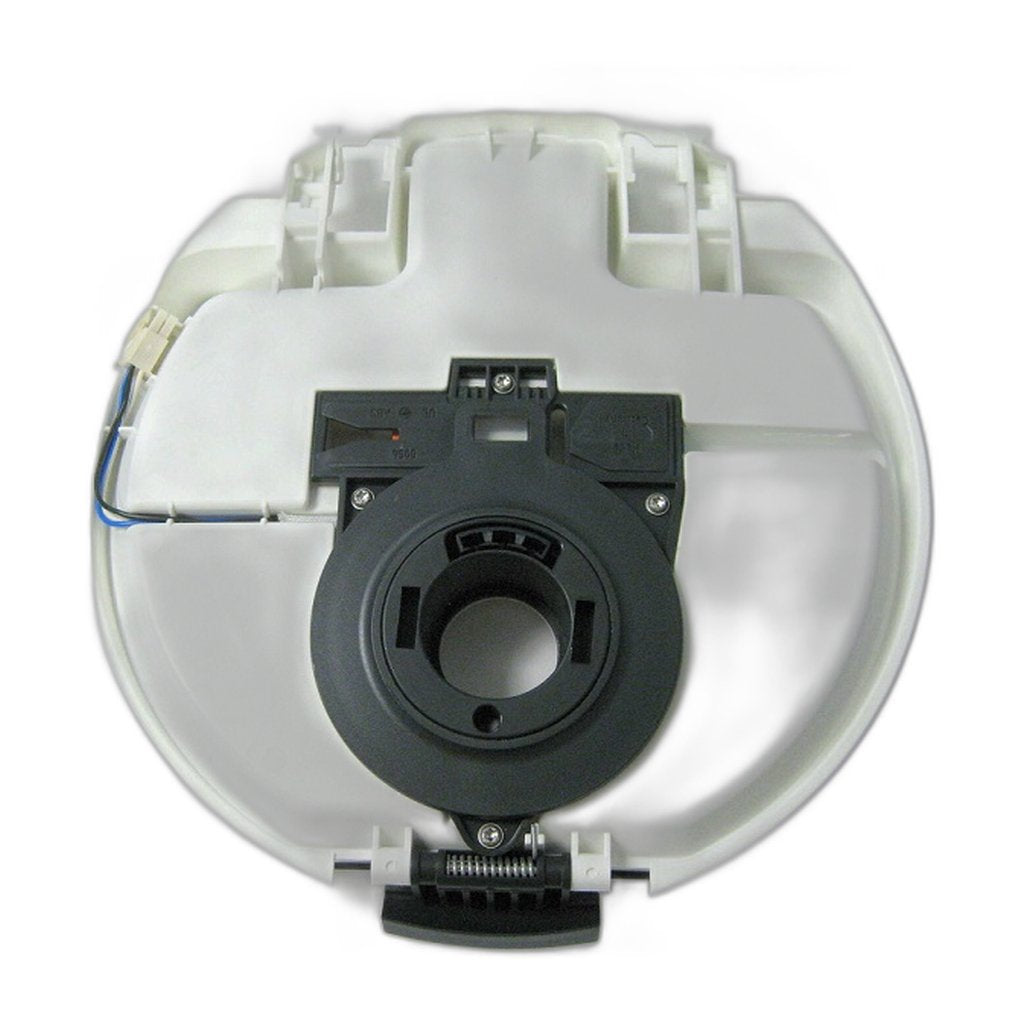

The wired hose neck is the tell. Two AIRBELT D inner panels look much alike across a counter, and what divides them is whether the neck on the front carries current out to a powerhead. 8051AM4 is the wired build, assembled for the AIRBELT D4 Premium and arriving with the bag cover insert 8129GS, part 8093, the bag indicator and spring 7020ER, the cover release with axle and spring 8114ER, the cover seal 8130, the wired neck 8079ER, screw 01036 and the indicator adjuster 8127ER.
Read as a system, the panel is doing three things at once. It clamps the bag collar over the inlet so unfiltered air cannot slide past toward the motor, it carries the release catch and the indicator gear, and it passes the powerhead supply through to the hose connection. Chasing a dust bypass one component at a time on a panel of any age seldom settles it, since seal, catch and linkage each wear on their own schedule. Fitting the assembly renews the lot at one moment.
- Order code: 8051AM4
- Machine: AIRBELT D4 Premium
- Numbers built into it: 8129GS, 8093, 7020ER, 8114ER, 8130, 8079ER, 01036, 8127ER
- What sets it apart: the hose neck is wired - 8051AM1 is the unwired build
- Drawing references: wired neck at item 31 on the AIRBELT D sheet, adjuster at 33, cover seal at 34
- Change it when: dust turns up in the chamber, the collar will not seat, or the indicator has stopped reporting
Add filter bags 8120AM to the order if the chamber has been running dusty, because a bypass generally leaves a mess behind that outlives the repair itself. Anyone searching for a SEBO D4 inside bag cover, an AIRBELT D4 bag compartment panel or a D4 Premium inner cover complete has found the right number. Genuine SEBO, authorized dealership. Dispatch normally falls inside a 2-5 business day window.
