SEBO Post-Motor Microfilter...
$8.00
Product details

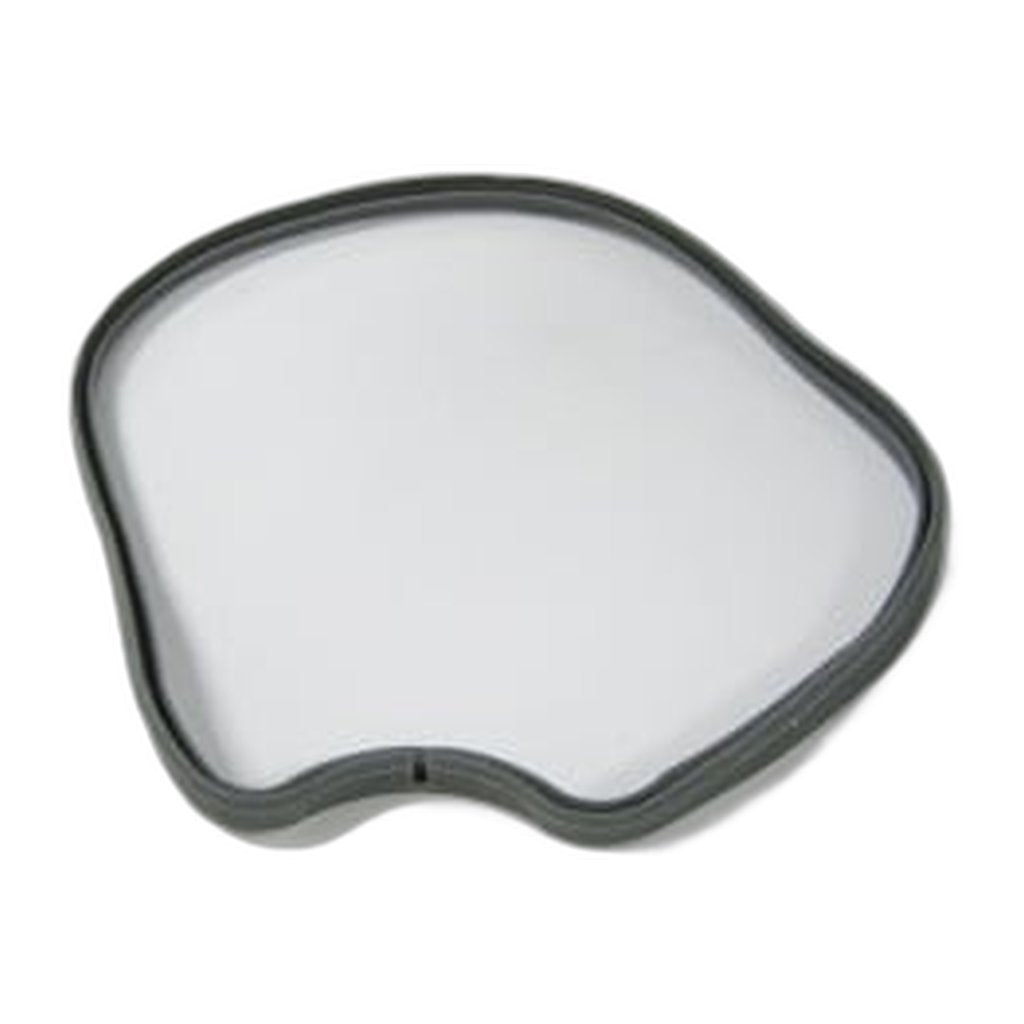

A grey film building up across the floor by the exhaust vent is not a filter problem; it is a sealing problem. Part 8065ER is the post-motor filter seal for the AIRBELT D1 Turbo and the D4 Premium, which SEBO names the microfilter seal and draws as item 3 on the AIRBELT D sheet.
That exhaust group lives in the base of the machine. Item 1 on the drawing is the bottom casing, which SEBO supplies with its castors and this seal already installed; item 2 is the castor itself and item 5 the microfilter holder. The seal is squeezed between filter frame and housing so that every bit of air leaving the motor has to travel through the media rather than round its edge. Heat and constant compression harden the material across the years, and once it is flattened, cracked or torn, a bypass opens that no grade of media can compensate for - the exhaust simply starts carrying whatever the bag let through.
- Order code: 8065ER
- Machines: AIRBELT D1 Turbo, AIRBELT D4 Premium
- Drawing reference: AIRBELT D sheet, item 3, captioned as the microfilter seal
- Clamped by: microfilter holder 8084ER, item 5
- Media to fit alongside: Filter Set D 8191AM - one microfilter and one exhaust microfilter
- Change it when: the seal is flattened, split, or leaving dust tracks around the housing
Do the whole exhaust side in one visit - seal, holder if it has warped, and fresh media - so the machine goes back together properly closed rather than nearly closed. Owners search for this as a SEBO microfilter seal, an AIRBELT D exhaust filter gasket or a D4 post motor seal. Genuine SEBO seal, supplied by an authorized dealership. Typically out the door within 2-5 business days.
