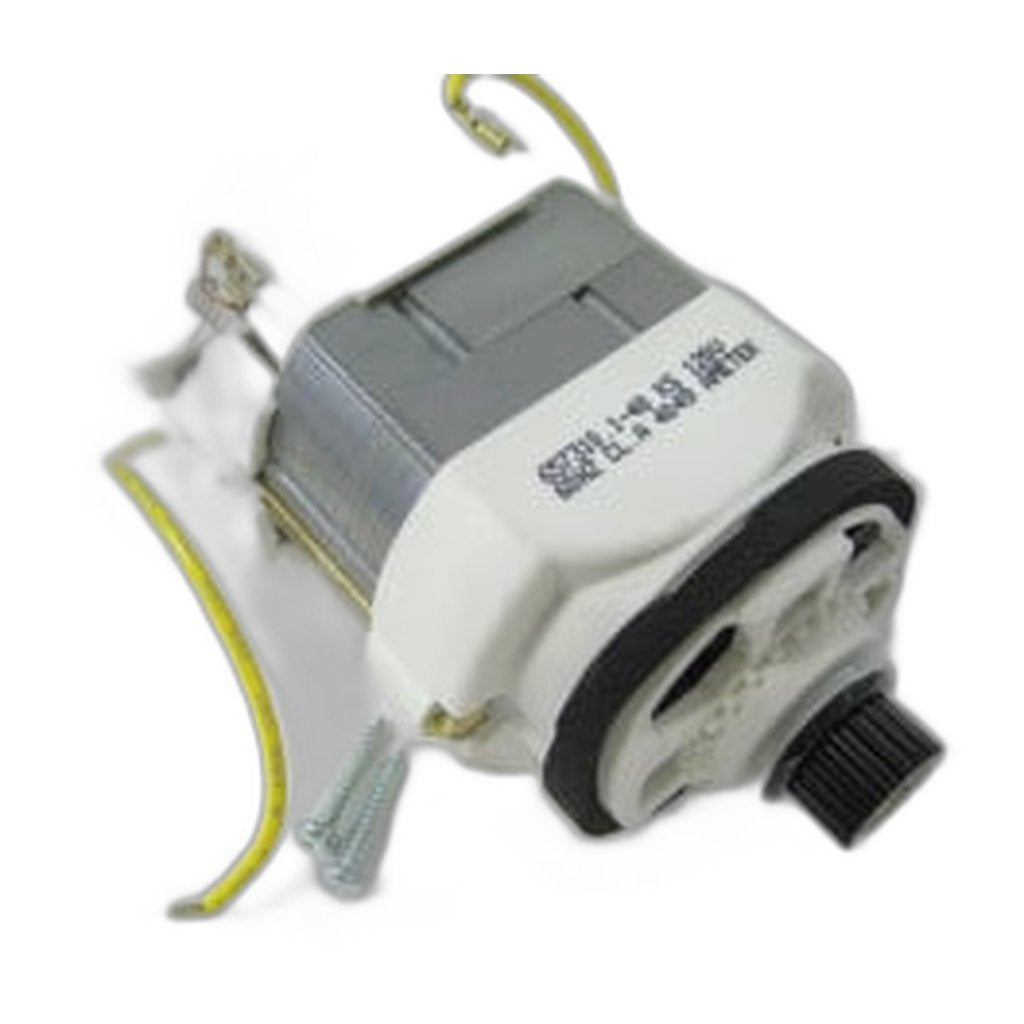

SEBO 120V Motor with Pulley for the Duo

When a Duo brush machine will not turn its brushes at all and the belts, pulleys and gears have already been ruled out, the motor is what remains. Part 3049ER is SEBO's 120 V replacement for the Duo, and it arrives with the pulley already fitted, so the drive can be rebuilt without transferring anything across from the old unit or hunting for a puller.

The Duo parts diagram lists the motor at position 34, with the terminal block 0502 at 33 and the locking washer 0141 at 35 either side of it, and the 3 mm drive belt 3038 close by at position 37. Motors end in one of three ways: carbon brushes worn down to the spring, a winding that has burnt, or bearings that have run dry. The warning signs overlap - a hot smell after a short run, hard or hesitant starting, a machine that hums without moving. Since this is the most substantial single component in the machine, confirm the diagnosis before ordering. Where the fault is only worn brushes, SEBO lists a carbon brush set with capacitor, part 05084S, specified for this very motor, and that is the smaller repair. Where the motor genuinely has to come out, inspect the belt path and pulleys while access is good.

• Part number: 3049ER
• Fits: the SEBO Duo brush machine
• Voltage: 120 V
• Supplied: complete with pulley fitted
• Diagram position: 34 on the SEBO Duo parts diagram
• Service alternative: carbon brush set with capacitor 05084S, listed by SEBO for motor 3049ER
• Inspect while it is out: drive belt 3038, motor pulley 3014, terminal block 0502

Listed for anyone searching a SEBO Duo motor, a Duo 120V replacement motor, or the number 3049ER on its own. Genuine SEBO motor through an authorized dealer, shipping in 2-5 business days.
