SEBO Printed Circuit Board ...
$59.00
Product details

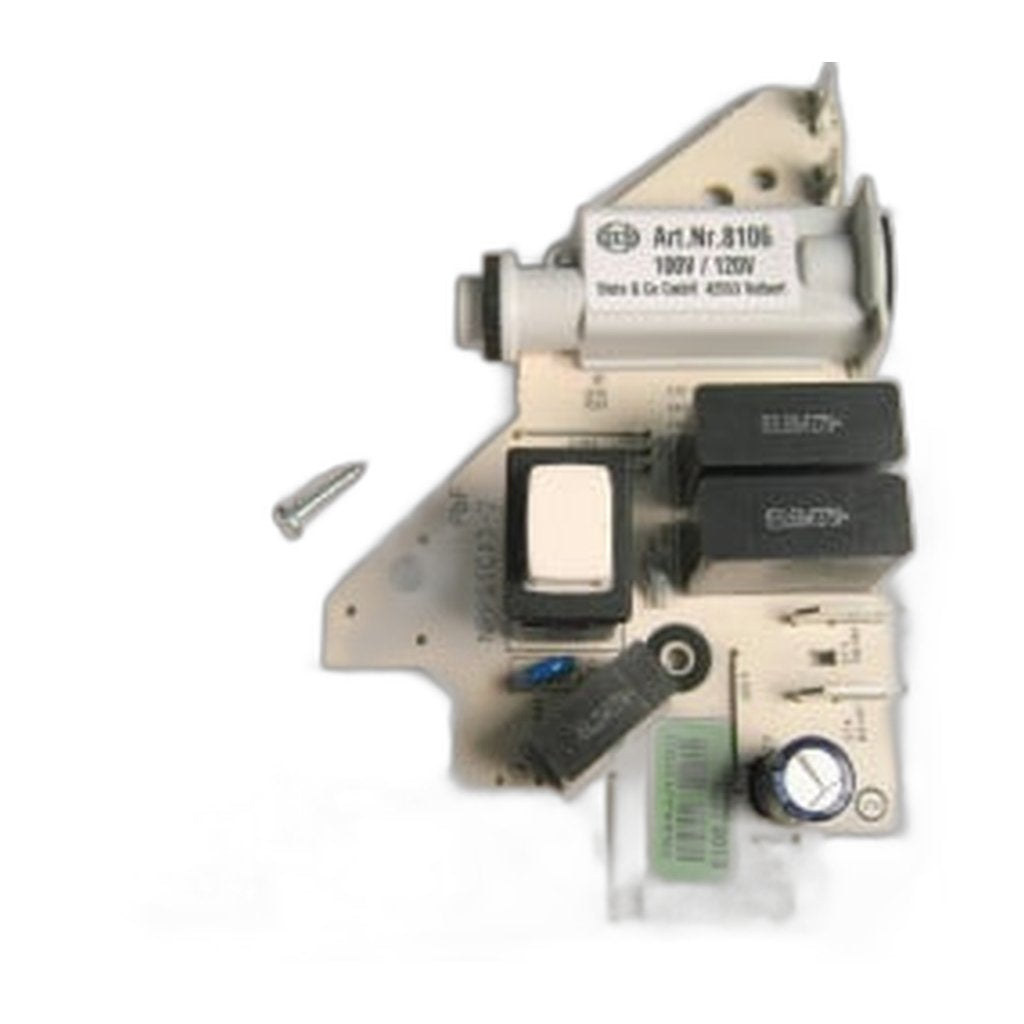

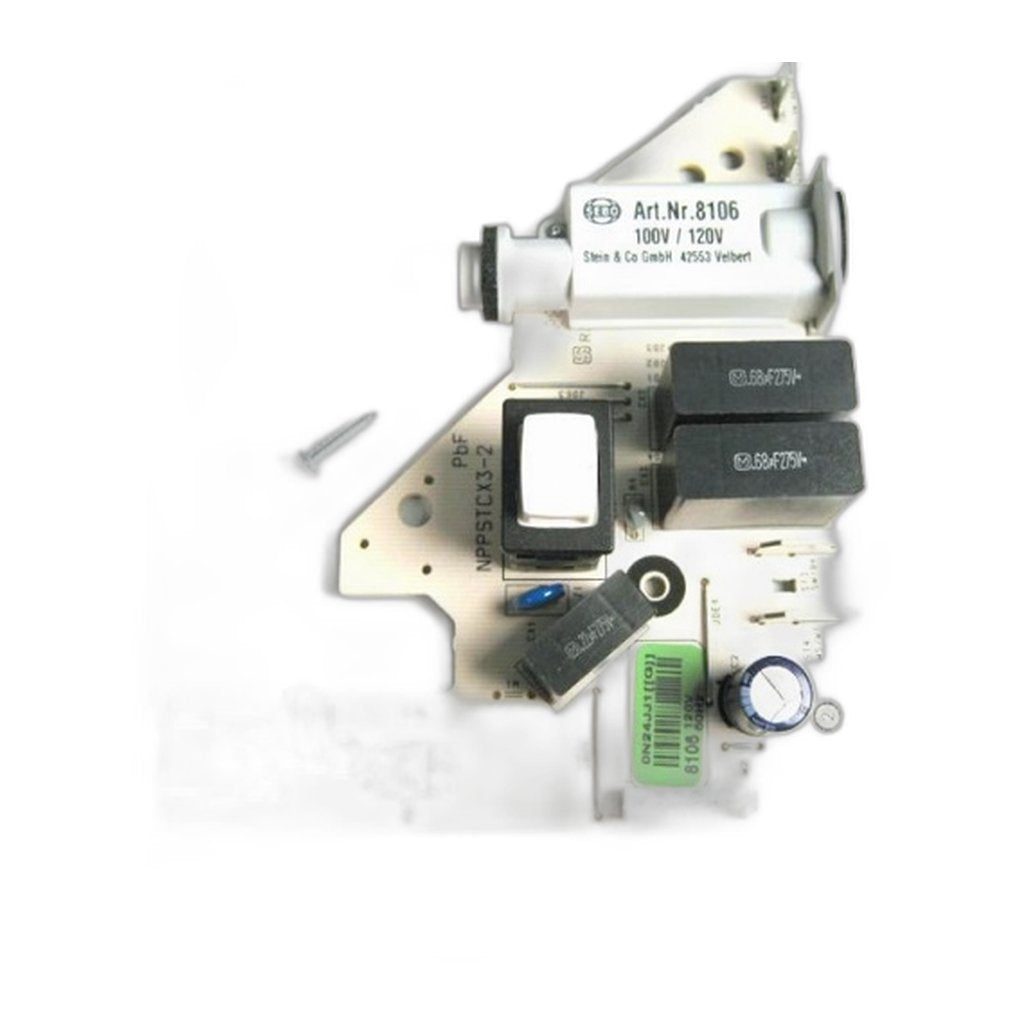

On the AIRBELT D4 Premium the power switch is not a component in its own right. SEBO builds it onto the control board, so a canister whose switch has died, or one that needs several jabs before it wakes up, is put right with board 8106ER rather than with any standalone switch.
Contacts wear out by design. Every make and break draws a small arc, the faces pit a little further, and carbon gathers in the gap until conduction becomes a matter of luck. Owners report it in a handful of recognisable ways: three presses to start where one always did; a canister that quits when the body is caught by a foot; a machine that ignores the button entirely while its cord and plug both test sound. Because the control circuitry occupies the same board, behaviour that wanders under load can lead back here as well.
Ordering deserves care, since the AIRBELT D drawing shows more than one board around this corner of the machine and the captions read alike. Item 15 on that sheet is 8102ER. Item 52 is 8108ER, which holds the indicator lamps. Neither of those is this part. 8106ER is specifically the board carrying the switch, and none of the three substitutes for another, so work from the number your own parts list gives rather than from a caption.
- Order code: 8106ER
- Machine: AIRBELT D4 Premium
- Form: one assembly, switch already mounted to the board
- Separate numbers nearby: 8102ER at item 15, 8108ER at item 52
- Wiring that reaches it: internal cable 8160, item 49
- Change it when: starting takes repeated presses, the machine drops out when knocked, or nothing happens with a proven cord
Take the plug out before the shell comes apart, record where every lead was attached, and leave the job to a vacuum technician if mains-side wiring is unfamiliar territory. Searches for a SEBO D4 circuit board with switch, an AIRBELT D4 power switch board or a D4 Premium control board all describe this number. Genuine SEBO board, authorized dealership. Allow 2 to 5 business days for dispatch.
