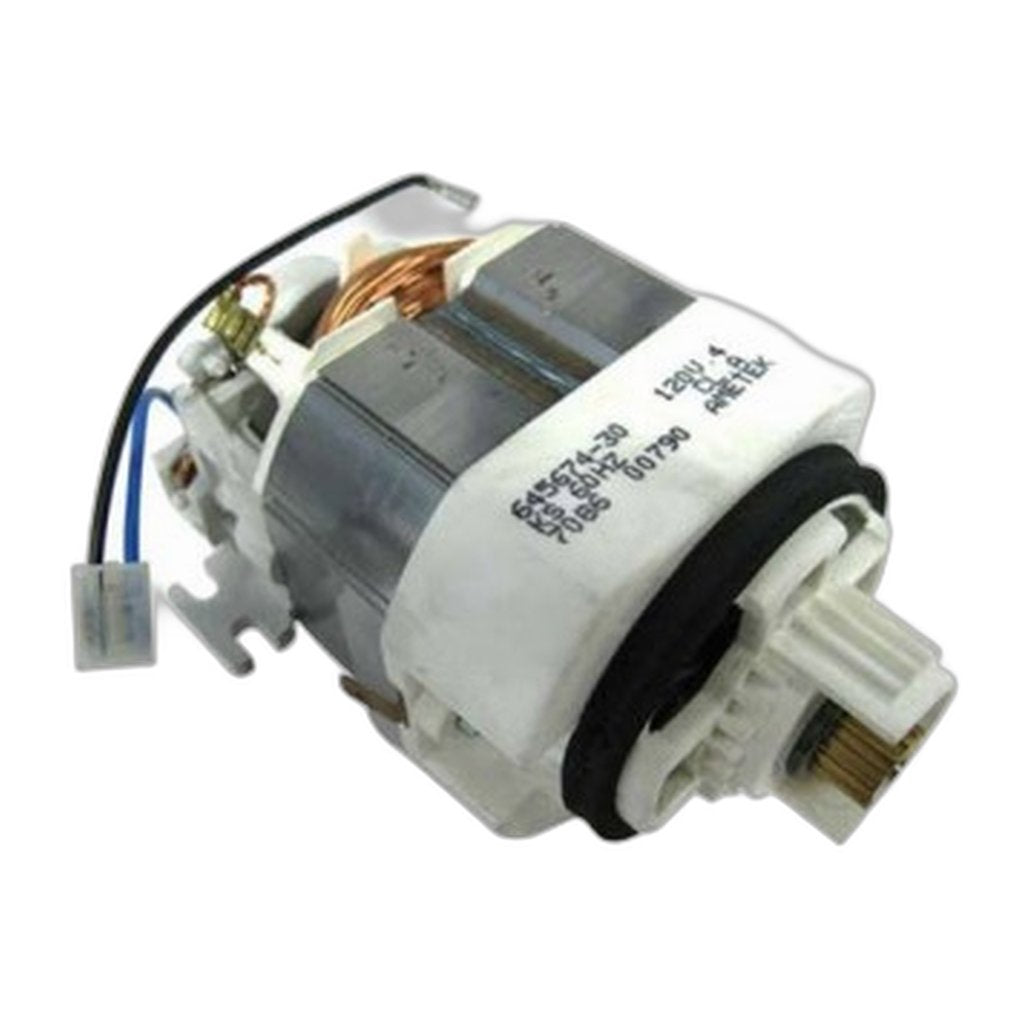

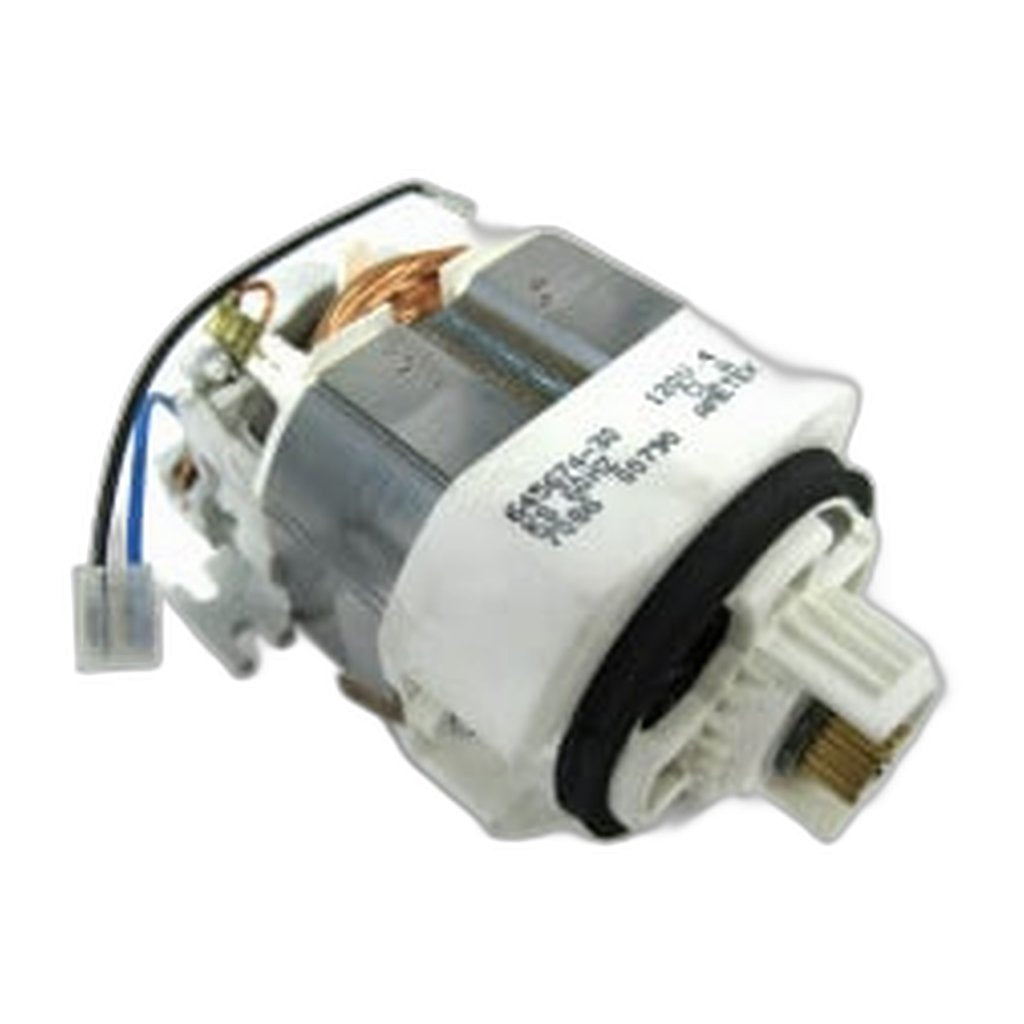

SEBO 200 W Brush Motor with Pulley for ET-2 Power Heads

The 200 watt brush motor is the ET-2 specific unit, and 2974ER is it: 120 volts, pulley fitted, ready to drop straight into the head. That higher rating is what separates it from the 175 watt motor, part 2973ER, so identify the head before ordering rather than treating the two as interchangeable — they share a diagram position but not a part number.

Fitment is short and precise. SEBO lists 2974ER for ET-2 power heads in both the switched and unswitched builds, and for the FELIX 2 Premium upright that carries an ET-2 head. On the power head parts diagram the motor sits at position 128 and is listed together with items 129 and 139, so what arrives is the drive assembly rather than a bare armature.

Replace it when the brush roll turns slowly or stops while suction stays strong, when dry bearings set up a squeal that rises with speed, or when a burnt smell follows the head down the hallway. A motor that has begun to drag will also chew through belts, so a machine on its second or third belt in quick succession is worth a closer look at the drive rather than another belt. Two cheaper faults mimic a dead motor and should be ruled out first: the carbon brush set 05141S, and the 200 W printed circuit board 2689ER. With the head open, the belt 2923, the motor pulley 2319, the 15 in brush roller 2838AM and the bearing blocks 2313GS and 2314GS are all within reach for inspection.

• Part number: 2974ER
• Rating: 120 V, 200 W
• Supplied: with pulley
• Fits: SEBO ET-2 power heads, switched and unswitched, and the FELIX 2 Premium
• Diagram position: 128, listed with 129 and 139
• Related numbers: 05141S carbon brush set, 2689ER circuit board, 2923 belt, 2319 motor pulley, 2838AM brush roller
• Not to be confused with: the 175 W brush motor, part 2973ER

Searches for a SEBO ET-2 brush motor, a 200 W power head motor replacement or part 2974ER all point at this unit. Genuine SEBO drive motor from an authorized dealer. Ships in 2-5 business days.
