SEBO Foot Pedal with Axle and Spring for FELIX, ET-1, ET-2 and DISCO — Orange

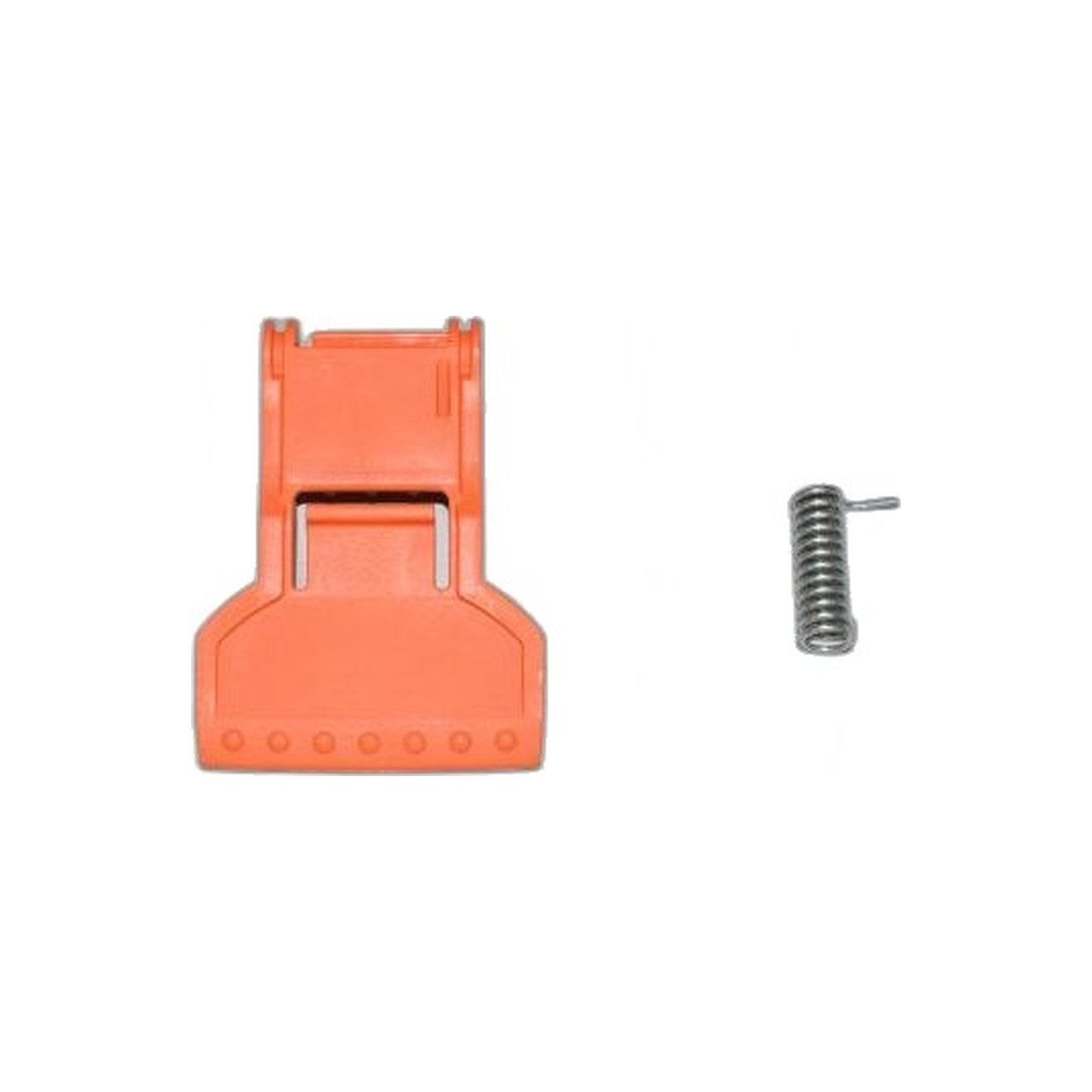

Orange plastic, a steel pivot pin and a return spring arrive together as one item in 2937OR. Step on the pedal and the handle unlocks from upright so the machine can be reclined for a pass under a table; lift your foot and the spring carries the pedal back, ready for the next release.

SEBO draws the pedal at position 112 on the ET-1/ET-2 power head sheet, at 112 on the DART diagram and at 112 on the FELIX diagram, with the wheel at 111 on one side of it and the complete swivel neck at 113 on the other. The DISCO floor polisher parts list carries the same pedal at position 24. Fit a new one when the handle drops loose the moment the pedal is brushed, when the pedal stays down after being pressed, or when a snapped spring leaves the lock rattling as you push. Since the pin and spring come in the pack, nothing has to be salvaged off the old assembly.

• Part number: 2937OR
• Supplied as: pedal, axle and return spring together
• Color: orange
• Fits: ET-1 and ET-2 power heads, switched and unswitched, and the DISCO floor polisher
• Also listed for: FELIX Premium, FELIX 2 Premium, DART, C3.1, AIRBELT D4 PREMIUM, AIRBELT E3 Premium and AIRBELT K3 PREMIUM
• Diagram positions: 112 on the power head, DART and FELIX sheets; 24 on the DISCO list
• Related part numbers: 2306GS wheel at 111, 2307GS complete swivel neck at 113

This is one of the most-searched SEBO FELIX pedal repairs for a reason: the pedal takes a boot every time the machine is used, and it is the part that decides whether the handle release still feels positive. German-made SEBO component from an authorized dealer, shipping in 2–5 business days.
