SEBO Internal Wiring HS, Co...
$26.00
Product details

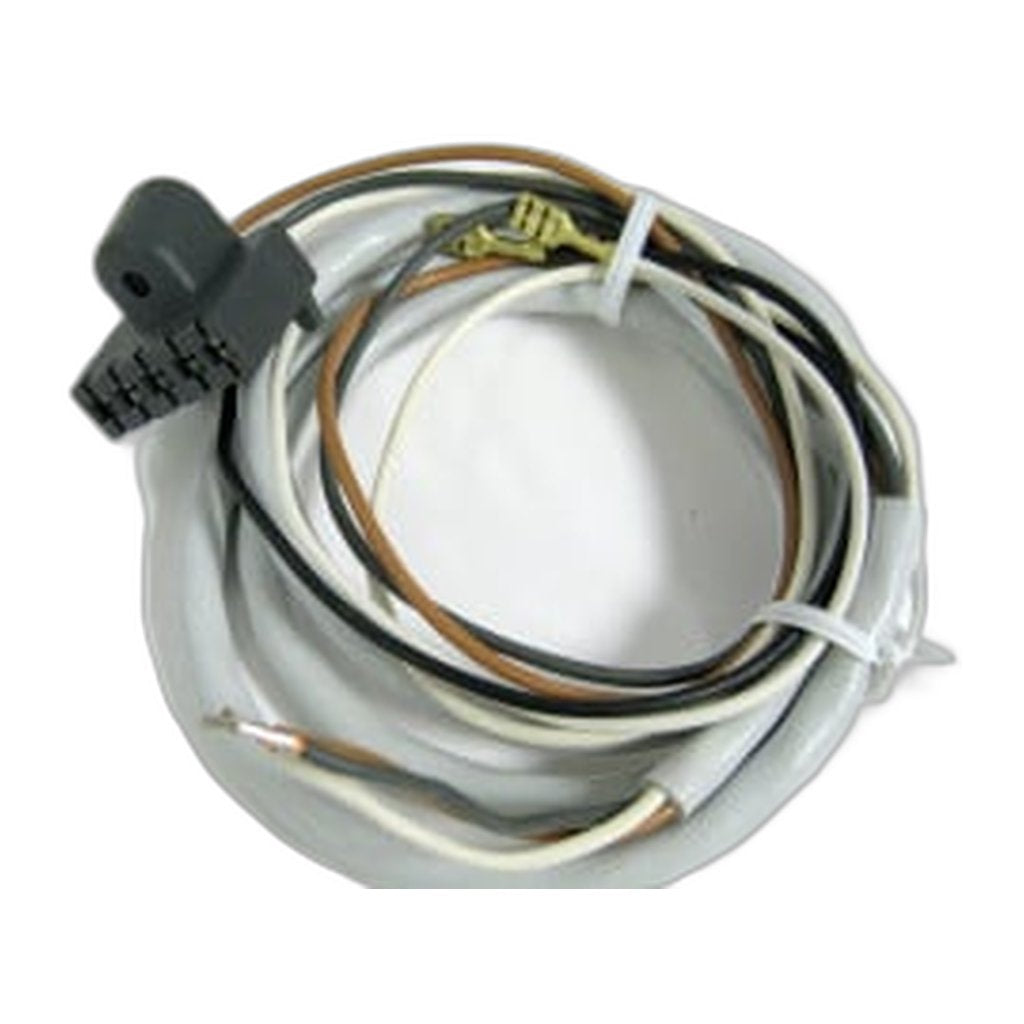

Part 7071 is the complete HS internal wiring set for SEBO FELIX Premium uprights and for the FELIX 2 Premium, in the newer internal configuration. Ordering it brings the whole loom, terminals and routing included, rather than one lead cut to length. SEBO's FELIX exploded diagram places the internal cable at item 3.
Reading across that same sheet shows why the set exists. The loom ties together the 120 V printed circuit board with variable suction control at item 5, part 7111ER, the motor seal at item 7, part 1047, the 1000 W vacuum motor at item 8, part 7041ER, and the switch lever at item 28, part 7032ER. A single open conductor anywhere along that chain can present as a dead board, a dead motor or a switch that has quietly stopped doing anything, and diagnosing it one component at a time gets expensive in bench hours.
Old looms also fail for reasons that apply to every conductor in them equally. They have taken the same heat cycles from the motor, the same flexing at the same bend radii and the same vibration, so the strand that finally opened is normally just the first to reach its limit. That is why an intermittent electrical fault on a well-used FELIX tends to move somewhere else after a spot repair. Fitting the full HS set ends the sequence rather than extending it.
- Fitment: SEBO FELIX Premium, FELIX 2 Premium, newer internal configuration only
- Supplied as: complete HS internal wiring set
- Diagram position: item 3, internal cable, on SEBO's FELIX sheet
- Replace when: the machine cuts out intermittently, a terminal is discoloured, or insulation is chafed or brittle
- Related part numbers: 7111ER printed circuit board, 7041ER vacuum motor, 05140S carbon brush set for that motor, 1047 motor seal, 7032ER switch lever
Identify which internal layout your machine was built with first, since earlier-configuration machines are wired differently and will not accept this set. Work with the plug pulled throughout. Genuine SEBO FELIX internal wiring supplied by an authorized SEBO dealer, shipped in 2-5 business days.
