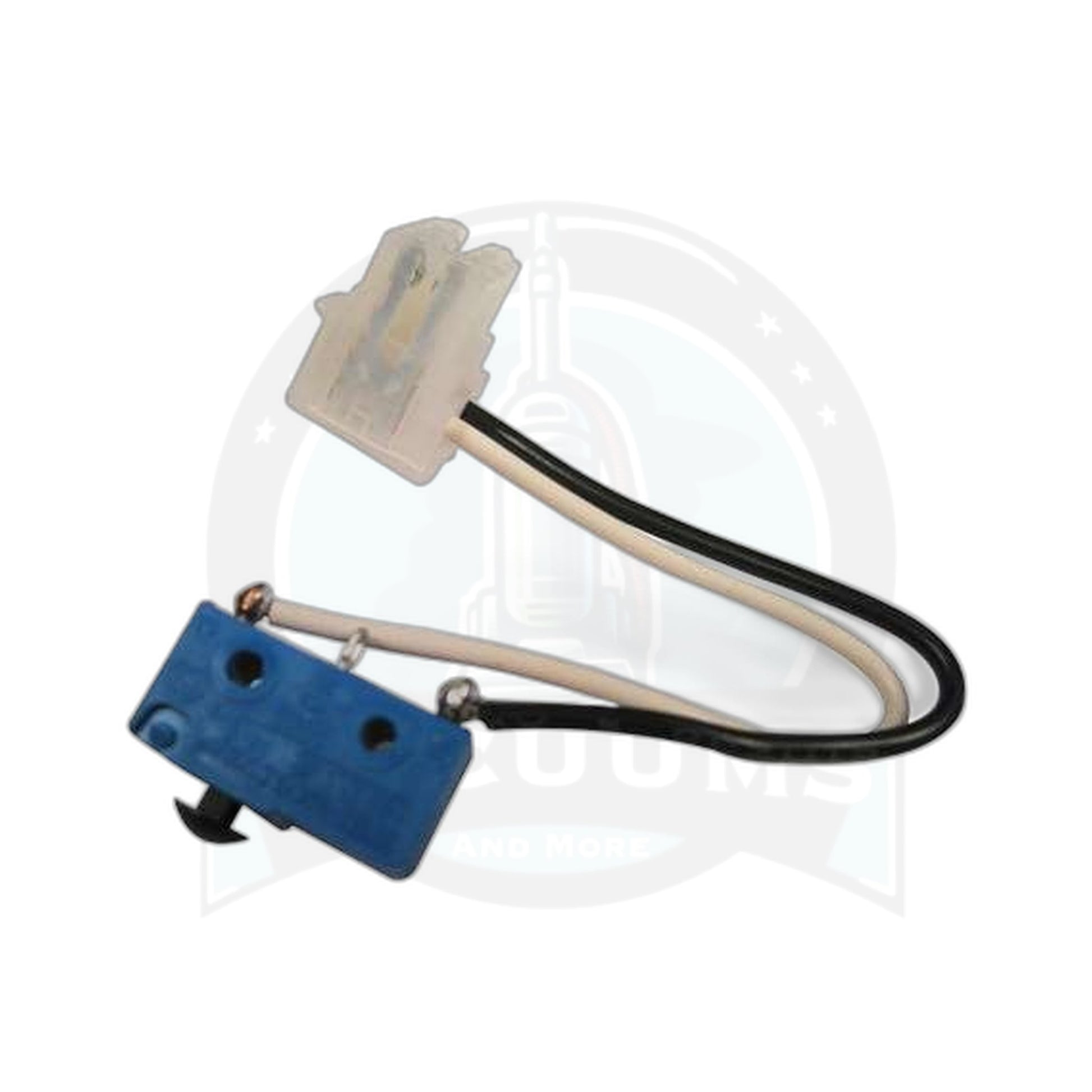

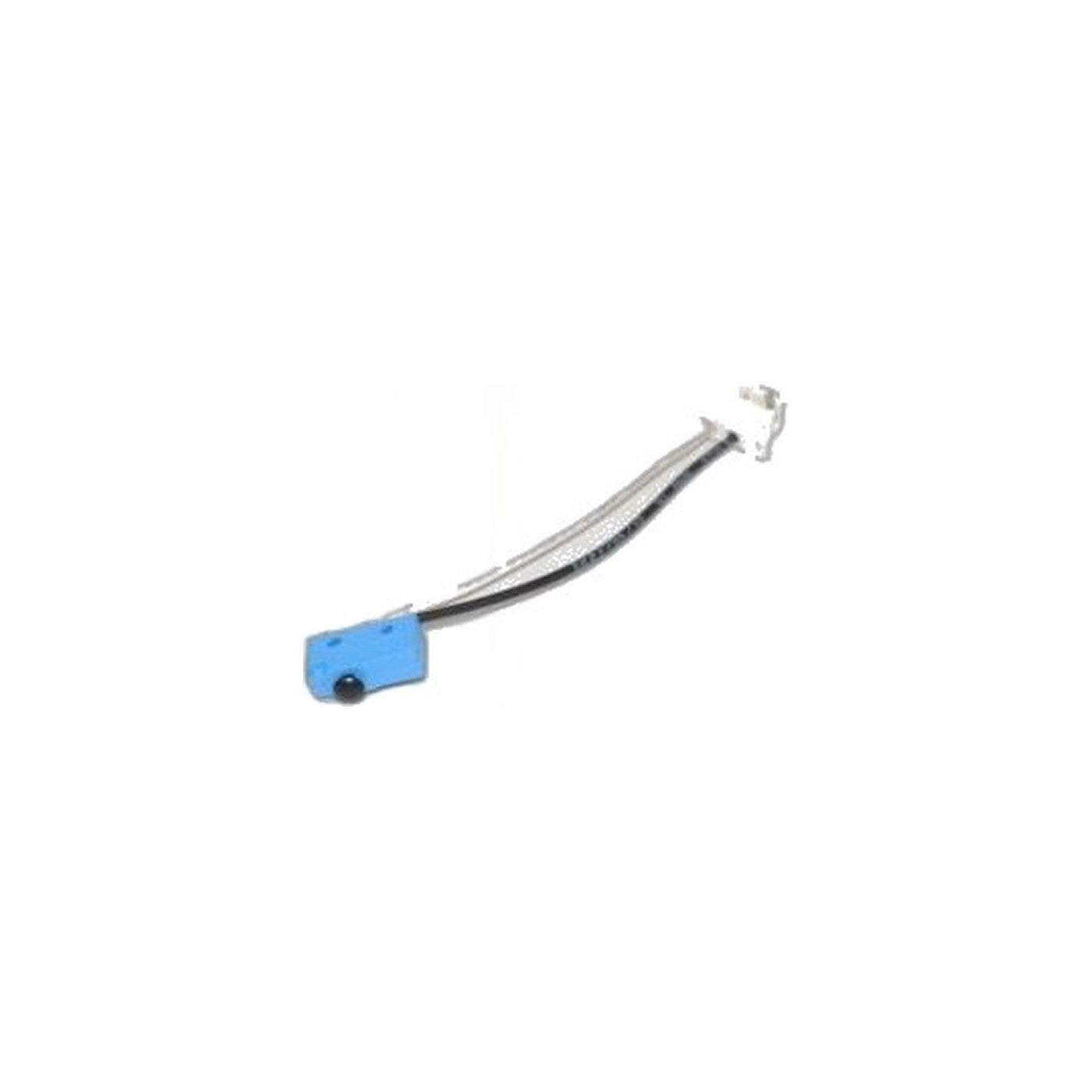

SEBO Micro Safety Switch with Wiring for ET-1 and ET-2 Power Heads

A brush roll that is dead, or that drops out whenever the wand is rocked back, points at the small safety switch tucked behind the swivel neck of an ET-1 or ET-2 nozzle. That switch tells the agitator motor when the head is in its cleaning position. Part 0880 is the SEBO replacement, supplied with its lead already attached, so the repair is a swap rather than a splicing exercise.

SEBO draws it at position 125 on the ET 1 / ET 2 power head sheet, again at position 125 on the DART sheet where it is called out as the safety switch with wiring, and at position 125 on the FELIX sheet as the swivel neck switch wiring. Buying switch and lead as one assembly is the sensible route here, because the lead flexes with the neck and frequently gives up at much the same time as the contacts do.

• Part number: SEBO 0880, micro safety switch with wiring
• Power heads: ET-1 and ET-2, in both the with-switch and without-switch builds
• Machines: FELIX Premium, FELIX 2 Premium, DART, AIRBELT D4 PREMIUM, AIRBELT E3 Premium, AIRBELT K3 PREMIUM and C3.1
• Diagram position: 125 on the ET, DART and FELIX sheets
• Supplied as: micro switch with its wiring already terminated
• Related: 0876ER, the swivel neck loom that runs alongside it; 05114, the single-pole power head switch
• Replace when: the brush roll is dead, or drops out as the wand is rocked back and returns when it is lowered

Rule out the belt and a roller bound with hair before the switch is blamed, since both stop an agitator while every electrical part behind it works perfectly. Pull the plug before the neck is opened, and note the lead routing as the old switch comes out so the replacement can follow the same path. Ordered as genuine SEBO stock, this is the number a service tech quotes when the agitator on an ET series nozzle has gone dead. Orders leave inside two to five business days.
