SEBO Switch Cap Holder for AUTOMATIC X1, X2, X4, X5, X7 and X8 — Gray Black

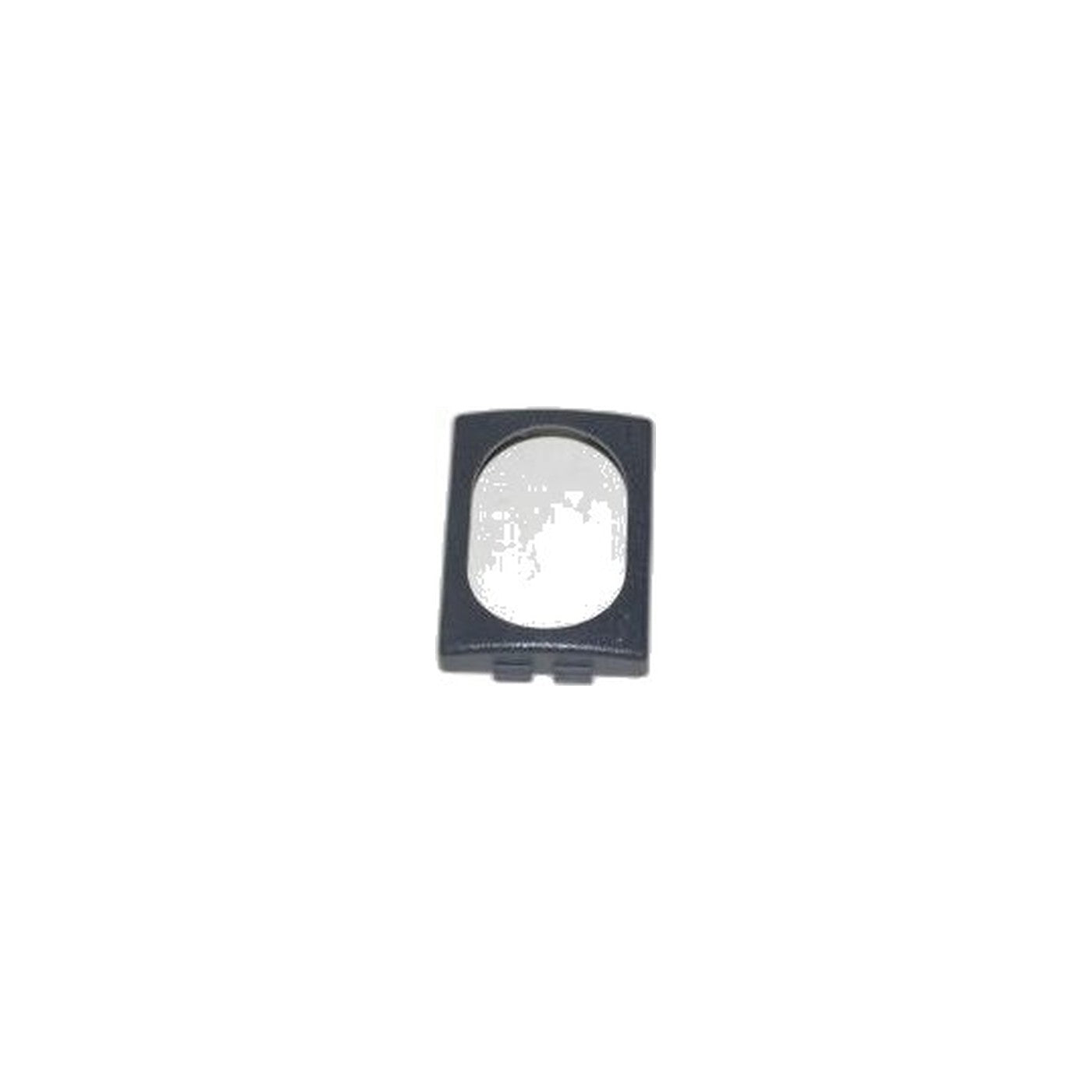

The holder is the frame the switch cap sits in, not the cap itself, and the two are ordered separately. Part 5161GS is that gray black surround, shown as position 7 on both the AUTOMATIC X4/X5 and the X7/X8 parts diagrams, and it locates the cap squarely over the switch so the press action stays true.

If a cap keeps working loose or sits at an angle, the surround is usually the broken piece rather than the cap on top of it. The clip legs are what give way: they are thin by necessity, they take the pressing force that would otherwise land on the switch body, and once one has snapped the cap has nothing to hold it. A new holder gives the cap something solid to clip back into and takes the load off the switch behind it again. With the cap removed the legs tell the story: any that have splayed outward will not hold a new cap either, whatever state the cap is in.

• Part number: 5161GS
• Colour: gray black
• Diagram position: 7 in the AUTOMATIC X4/X5 and X7/X8 exploded diagrams
• Fits: SEBO AUTOMATIC X1, X2, X4, X4 Boost, X5, X7 Premium and X8
• Sold as: the frame only — the cap is a separate part number, chosen by colour
• Switch behind it: 05113, supplied with its screws
• Other gray black trim across these models: cleaning wand 5045GS, attachment clip 1823GS, handle grip 5297GSAM, internal cover 5380GS

Searches for a SEBO switch surround, an X4 switch cap holder or a switch frame that will not hold the cap all arrive here. Order the holder and the correct colour cap together when a machine has years on it — one visit into the housing rather than two. Genuine SEBO moulding in gray black, shipping in 2–5 business days.
