SEBO Left-Hand Swivel Neck ...
$6.99
Product details

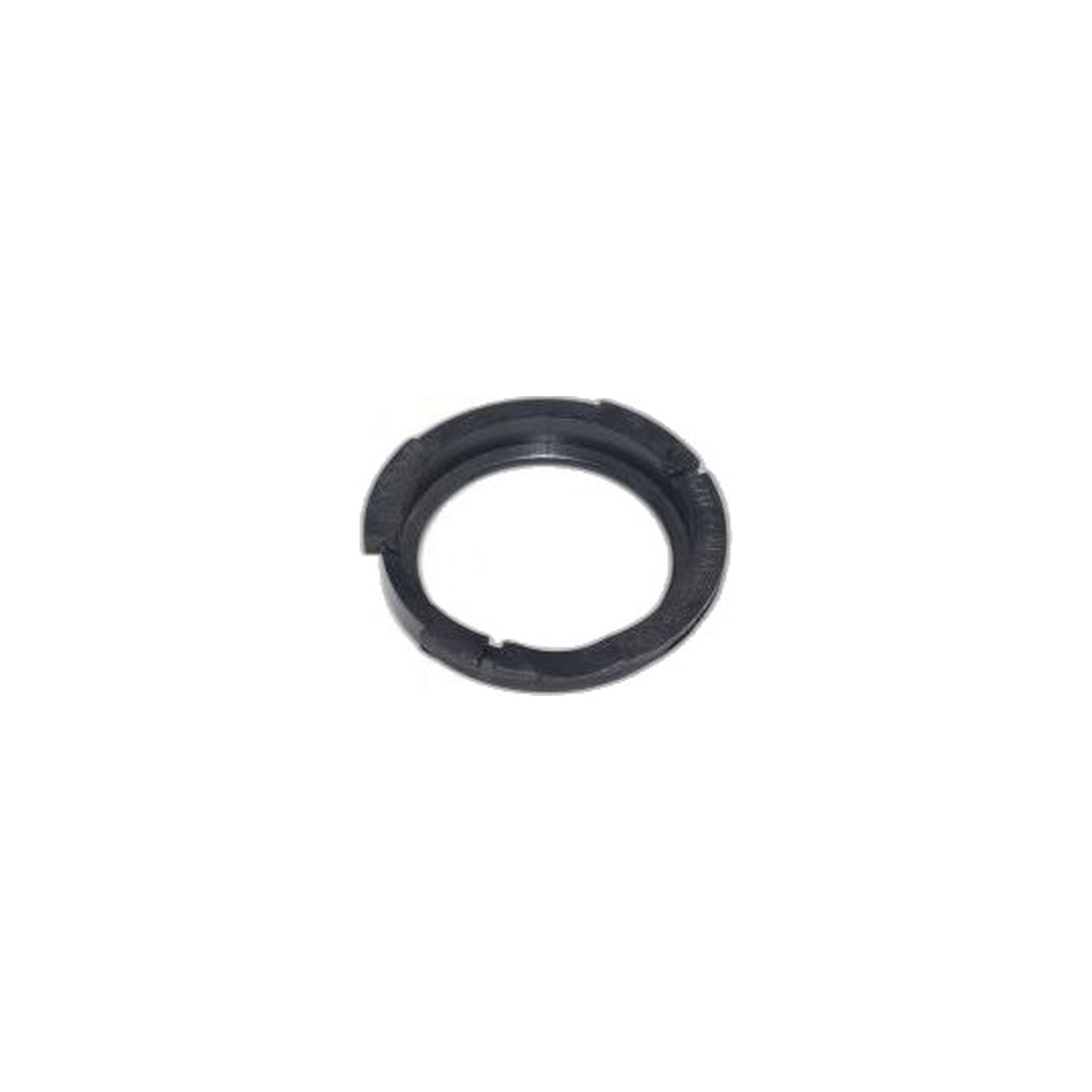

Gritty steering, or a neck that rocks when the body is held still, points straight at the pivot bearings. SEBO 5717 is the left-hand bearing, and it is one of the few components the company carries right across the upright range: item 111 on the AUTOMATIC X4/X5 drawing, item 107 on the AUTOMATIC X7/X8 drawing, item 112 on the ESSENTIAL G4/G5 drawing. One number, three sheets, ten machines.
What the bearing supports is the weight of the entire handle assembly as it swings from side to side, a load applied thousands of times a week in ordinary use. Once the bore goes oval the joint develops play, effort at the handle climbs, and the mouldings either side begin absorbing stress they were never shaped for. That is the argument for renewing a worn pivot early rather than late, because a bearing left to knock about eventually takes the swivel neck with it. Most repairers change left and right together once the neck has been opened, and the counterpart on the other side carries a different number depending on which family the machine belongs to.
- Side: left-hand
- Fits, AUTOMATIC range: SEBO AUTOMATIC X4, AUTOMATIC X4 Boost, AUTOMATIC X5, AUTOMATIC X7 Premium, AUTOMATIC X7 Pet, AUTOMATIC X8
- Fits, ESSENTIAL range: SEBO ESSENTIAL G1, ESSENTIAL G2, ESSENTIAL G4, ESSENTIAL G5
- Diagram positions: 111 on AUTOMATIC X4/X5, 107 on AUTOMATIC X7/X8, 112 on ESSENTIAL G4/G5
- Role: left-side pivot for the swivel neck, carrying the handle assembly
- Supplied: one bearing, left side only
- Part number: 5717
- Right-hand bearing: 5101 on the AUTOMATIC machines, 2825 on the ESSENTIAL machines
- Complete swivel neck assemblies: 5729UL for the AUTOMATIC X4, X4 Boost and X5, covering items 105 to 108 and 111; 52023ER for the AUTOMATIC X7 Premium, X7 Pet and X8; 20823UL for the ESSENTIAL G4 and G5
A useful check before ordering is to lay the machine back, hold the body still and work the handle left and right by hand. Grinding or a knock at the ends of the travel is the bearing; a smooth pivot with a wobble in the neck itself is a support, which is catalogued separately. Shoppers find this page searching the bare number, a SEBO swivel neck bearing for an X7, a left hand pivot bearing for an ESSENTIAL G5, or a genuine SEBO steering bearing. Ships in 2–5 business days.
