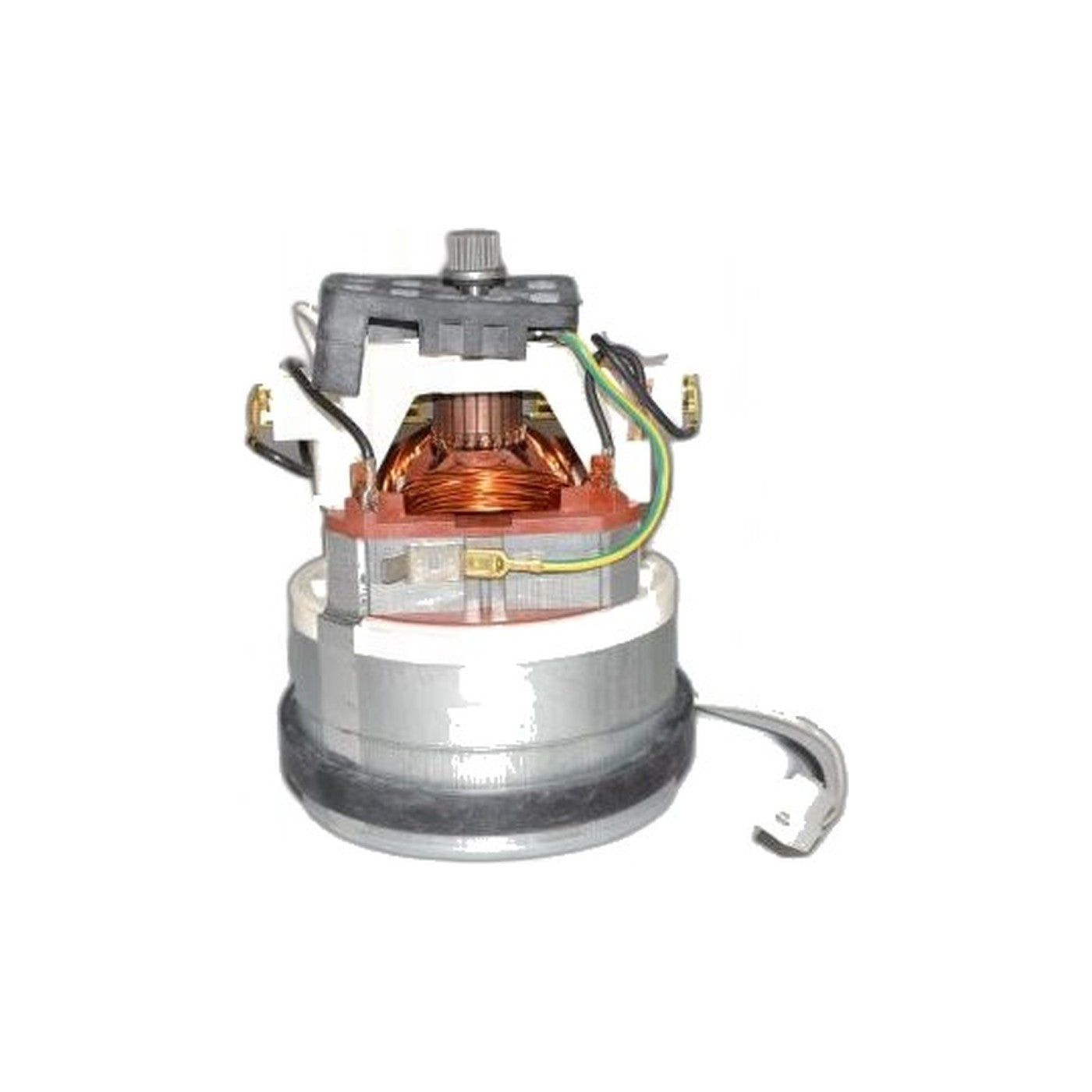

SEBO 1300 W Suction Motor with Pulley and Mount for AUTOMATIC X4, X5 and ESSENTIAL G Series

Order code 5468 is the suction motor SEBO specifies for the AUTOMATIC X4, X4 Boost and X5 and for the ESSENTIAL G1, G2, G4 and G5. Rated 1300 W on 120 V, it arrives with pulley and mount fitted and appears as item 146 on the ESSENTIAL G4/G5 sheet, close to the rubber mountings at item 148 that carry it inside the body.

A motor rarely stops without notice. The pattern to watch for is suction dropping away and staying down after a new bag and clean filters; a bearing note rising in pitch as the unit heats; a hot smell of insulation after a long run; or the machine shutting off mid-job and refusing to restart until it has cooled. With the airway proven clear, each of those points here rather than at filtration.

The pulley matters more than it first appears. Because it is already on the shaft, the belt run lines up on its original centres and nothing has to be pressed off the failed unit and pressed back on. That removes the one step in this job most likely to damage a sound part.

Reaching the motor means opening the body and working with the loom, so the job belongs to someone comfortable around mains-powered equipment or to a service centre.

• Order code: 5468
• Power: 1300 W at 120 V
• In the box: motor, pulley, mount
• AUTOMATIC uprights: X4, X4 Boost, X5
• ESSENTIAL uprights: G1, G2, G4, G5
• Drawn at: item 146 on the ESSENTIAL G4/G5 sheet
• Sits with: rubber mounting 5100, motor pulley 5462

Searches leading here include SEBO 1300 W motor, AUTOMATIC X5 suction motor and ESSENTIAL G4 motor replacement, all describing this one assembly with its mount and pulley in place.

Genuine SEBO suction motor, dispatched in 2-5 business days.
