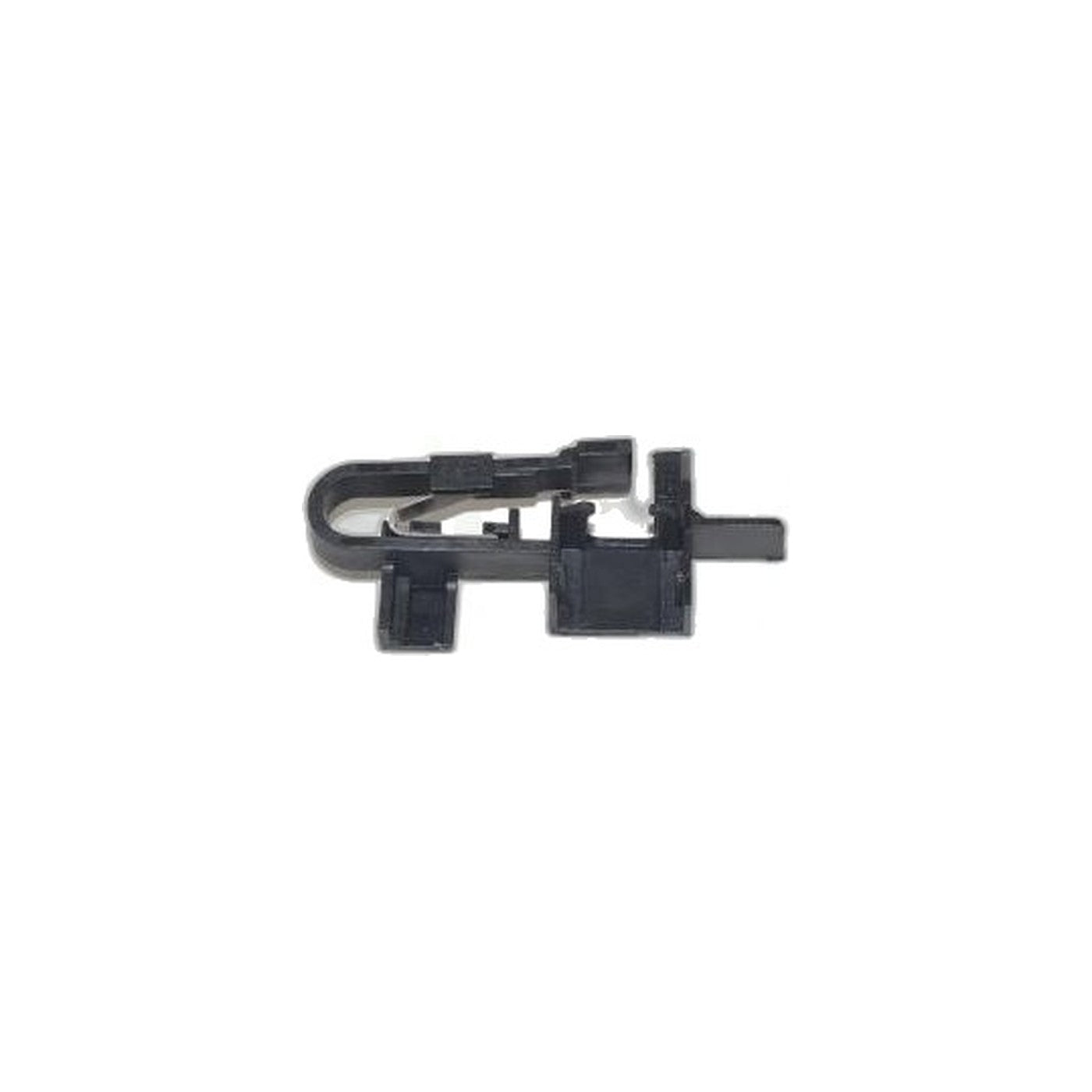

SEBO Switch Lever with Leaf Spring for ET-1 and ET-2 Power Heads

Between your thumb and the electrical contacts sits a lever backed by a leaf spring, and 2958ER supplies both as one piece. The spring gives the on/off action its snap and returns the lever to rest after each press, so the control commits to on or to off rather than hovering somewhere between the two.

SEBO draws the lever at position 131 on the ET-1/ET-2 power head sheet, at 131 on the FELIX diagram and at 139 on the DART, where it sits with the single pole switch 05114 and the wire 0881 in the group that makes up the complete switch. A tired or broken spring shows up as a mushy button, a lever that stays pushed in, or a brush roll that shuts itself off when the head takes a knock against a chair leg. The lever is also supplied inside the built-up assembly 2959ER, which is the better choice when the switch body or its wiring has failed as well.

• Part number: 2958ER, lever and leaf spring together
• Fits: ET-1 and ET-2 power heads, switched and unswitched
• Also listed for: FELIX Premium, FELIX 2 Premium, DART, C3.1, AIRBELT D4 PREMIUM, AIRBELT E3 Premium and AIRBELT K3 PREMIUM
• Diagram positions: 131 on the power head and FELIX sheets, 139 on the DART
• Job: gives the on/off control its travel, snap and return
• Related part numbers: 2959ER complete switch assembly, 05114 single pole switch, 0881 wire to the board, 2957 button lens

When a SEBO ET-1 switch feels dead under the thumb but the machine still runs, the lever and its spring are the parts to look at before anything electrical gets condemned, and they are far less work to change than the board behind them. Genuine SEBO parts, authorized dealer supply, shipping in 2–5 business days.
