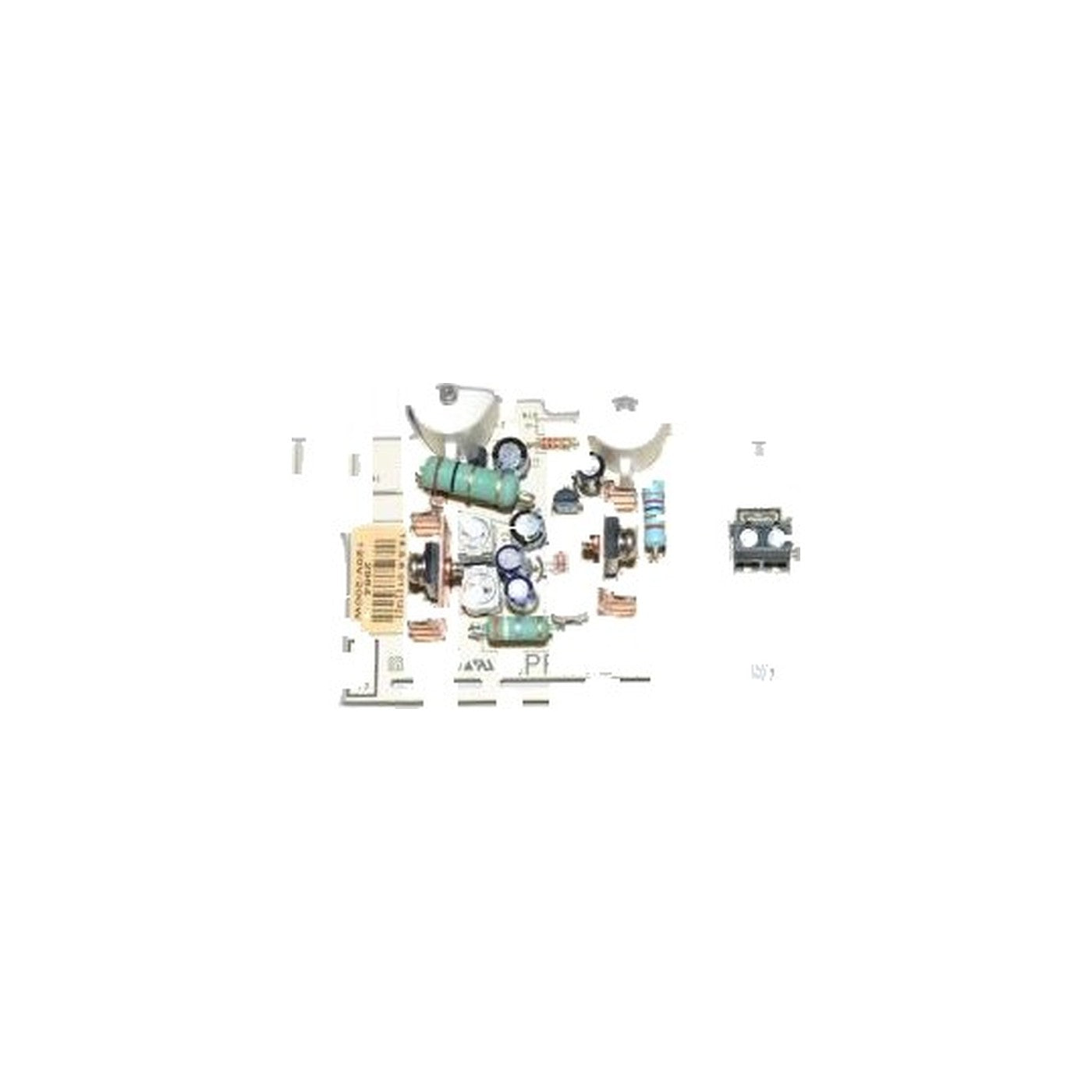

SEBO 200W Printed Circuit Board for ET-2 Power Heads

Rated at 200W and carrying the yellow on/off lamp, part 2689ER is SEBO's later control board for the ET-2 power head. It sits at position 134 in the ET 1, ET 2 Power Heads parts diagram.

Switching and speed control for the head both run through this board, so a failure here stops the roller dead while the suction motor carries on exactly as normal. That split, good airflow at the nozzle but a brushroll that is dead or comes and goes, is the usual reason one gets ordered. A snapped belt produces a very similar complaint, so it is worth lifting the base plate and confirming the belt and roller are sound before spending money on electronics.

Fitment covers ET-2 Power Heads (with switch) and ET-2 Power Heads (without switch), and the board is also used on the SEBO FELIX 2 Premium. Match the wattage carefully: the 175W board is a different part with its own number, 2684ER, and the two are not interchangeable, so read the rating off the board that comes out before ordering.

Label each connector as it comes away so the new board wires back exactly as the old one did, keep it dry and away from static, and hold it by the edges. Anyone searching for a SEBO ET-2 circuit board, a 200W power head board, or a FELIX 2 Premium controller replacement is looking at this number.

• Fits: SEBO ET-2 power heads, with or without a switch
• Also fits: FELIX 2 Premium
• Rating: 200W
• Version: later board with the yellow on/off lamp
• Part number: 2689ER
• Diagram position: 134 in SEBO's ET 1, ET 2 Power Heads diagram
• Do not substitute: the 175W board, 2684ER

Genuine SEBO board from an authorized dealer. Ships in 2–5 business days.
