SEBO Handle Assembly with Tube, Cord and Switch for ESSENTIAL G Series — Light Gray / Gray Black

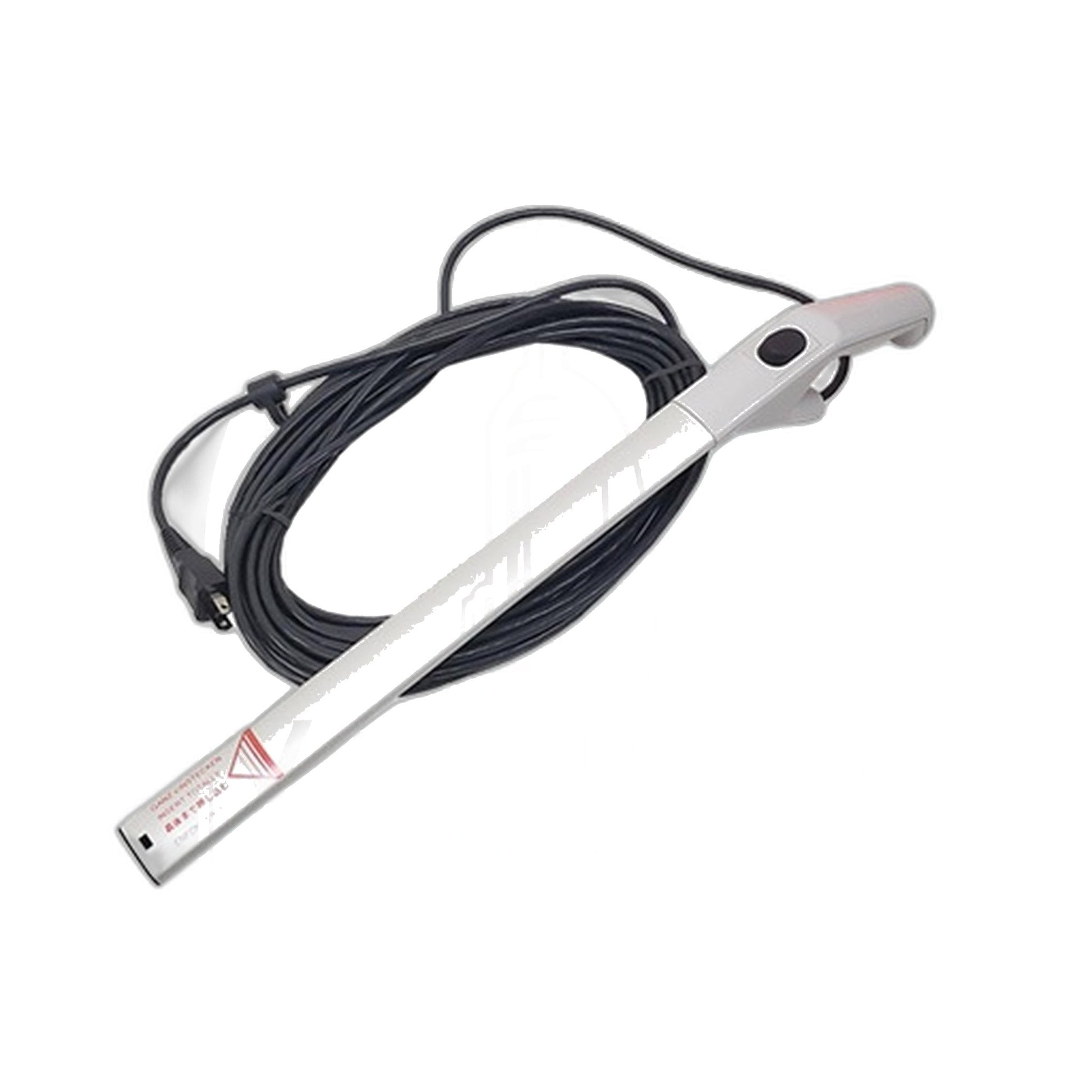

SEBO builds the top of an ESSENTIAL G upright as one serviceable section, and 5624AM is that section: the tube, the mains lead routed through it and the on/off switch, wired up and finished in light gray with gray black. The factory drawing for the G4 and G5 opens with it, listing the assembly as item 1 ahead of the grommet and the cable clamp that carry the lead down into the body.

Buying the section built up makes sense because its three parts seldom fail on their own. Conductors inside the lead fatigue where the cable passes into the grip and bends with every fold of the machine; the switch loses positive contact after some thousands of operations; the tube cracks around the point it is held and levered. Renewing the lot returns the correct cable route, strain relief and switch position in a single fitting, with no joints buried inside the tube where they cannot be inspected later.

• Fits: SEBO ESSENTIAL G1, G2, G4 and G5
• Includes: handle tube, mains lead, on/off switch
• Colours: light gray with gray black
• Diagram position: item 1, ESSENTIAL G4/G5 sheet
• Part number: 5624AM
• Related G numbers: 5187 handle tube, 05113 switch with screws, 5450DG power cord, 5296EA handle grip in light gray, 5160GS switch cap, 5161HG switch cap holder, 5162 cable clamp

Common searches that land here are SEBO ESSENTIAL G4 handle assembly, G5 handle with cord and switch, and G1 or G2 handle replacement. Run the new lead along the route the original followed and seat its strain relief before the tube is closed, so the cable is not pinched when the handle is folded down.

Genuine SEBO spare, supplied by an authorised dealer. Ships in 2–5 business days.
